| Specifications | Range |
| Out Diameter |
219mm-4000mm |
| Wall Thickness | max 25.4mm |
| Length | 3.0m-18m |
Production Line
This production line adopts the most advanced welding process technology, namely Two Step Production Process. The pipes are firstly formed into a pipe body and continuous tack-welded at high speed. In the second process step the pipes are subsequently finally submerged arc welded and that gives a higher quality weld compared with other SAWH production method. This process will eliminate the tensile stress of weld seam during pipe forming and submerged arc welding. It also effectively improves stability of the welded joints and productivities. These products are widely used in onshore oil and gas pipelines.Grades：API 5L A-X90, GB/T9711 L190-L625

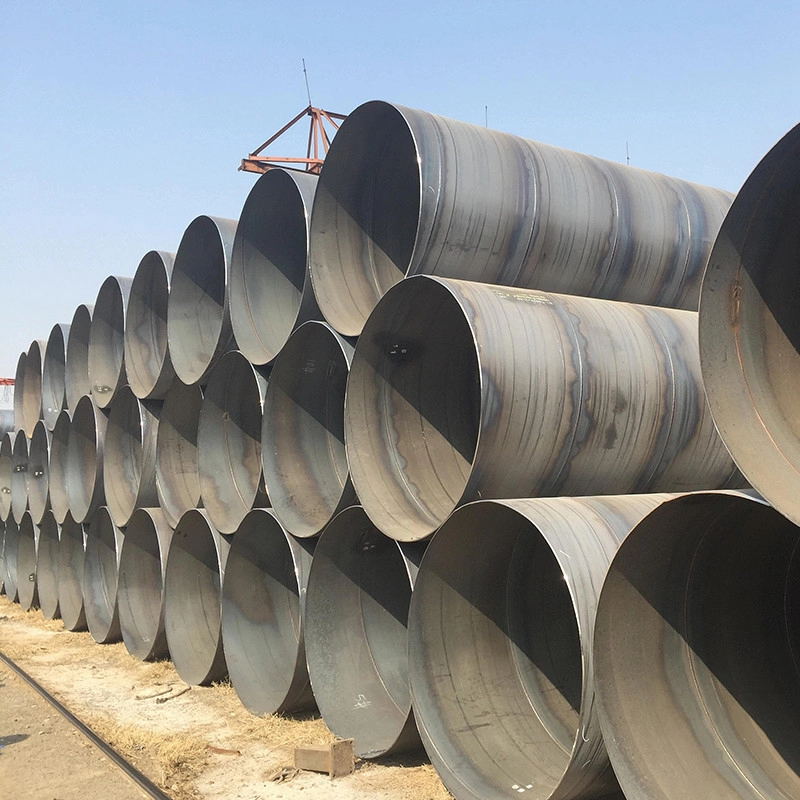

SAWH PIPES PRODUCT RANGE
| Pipe O.D | W.T. | Length(m) | ||||||||
| Min.Yield Strength(Mpa) | ||||||||||
| In. | Mm | 245(B) | 290(X42) | 360(X52) | 415(X60) | 450(X65) | 485(X70) | 555(X80) | 629(X90) | |
| 20 | 508 | 6.4-12.7 | 6.4-12.7 | 6.4-12.7 | 6.4-11.9 | 6.4-11.9 | 6.4-11.1 | 6.4-10.3 | 6.4-9.5 | 8.0-18.5 |
| 22 | 559 | 6.4-12.7 | 6.4-12.7 | 6.4-12.7 | 6.4-12.7 | 6.4-11.9 | 6.4-11.9 | 6.4-11.1 | 6.4-10.3 | 8.0-18.5 |
| 24 | 610 | 6.4-14.7 | 6.4-14.7 | 6.4-14.7 | 6.4-12.7 | 6.4-12.7 | 6.4-11.9 | 6.4-11.1 | 6.4-11.1 | 8.0-18.5 |
| 26 | 660 | 6.4-15.9 | 6.4-15.9 | 6.4-14.7 | 6.4-14.7 | 6.4-12.7 | 6.4-12.7 | 6.4-11.9 | 6.4-11.1 | 8.0-18.5 |
| 28 | 711 | 6.4-15.9 | 6.4-15.9 | 6.4-15.9 | 6.4-14.7 | 6.4-14.7 | 6.4-12.7 | 6.4-11.9 | 6.4-11.9 | 8.0-18.5 |
| 30 | 762 | 6.4-18.0 | 6.4-18.0 | 6.4-17.5 | 6.4-15.9 | 6.4-15.9 | 6.4-14.7 | 6.4-12.7 | 6.4-11.9 | 8.0-18.5 |
| 32 | 813 | 6.4-21.0 | 6.4-21.0 | 6.4-20.6 | 6.4-19.1 | 6.4-18.0 | 6.4-17.5 | 6.4-15.9 | 6.4-14.3 | 8.0-18.5 |
| 36 | 914 | 6.4-22.2 | 6.4-22.2 | 6.4-22.2 | 6.4-22.2 | 6.4-22.2 | 6.4-19.1 | 6.4-18.0 | 6.4-15.9 | 8.0-18.5 |
| 40 | 1016 | 6.4-25.4 | 6.4-25.4 | 6.4-25.4 | 6.4-25.4 | 7.1-23.8 | 6.4-22.2 | 6.4-21.0 | 6.4-17.5 | 8.0-18.5 |
| 42 | 1067 | 6.4-25.4 | 6.4-25.4 | 6.4-25.4 | 6.4-25.4 | 6.4-25.4 | 6.4-22.2 | 6.4-22.2 | 6.4-17.5 | 8.0-18.5 |
| 44 | 1118 | 7.1-25.4 | 7.1-25.4 | 7.1-25.4 | 7.1-25.4 | 7.1-25.4 | 7.1-22.2 | 7.1-22.2 | 7.1-19.1 | 8.0-18.5 |
| 48 | 1219 | 7.1-25.4 | 7.1-25.4 | 7.1-25.4 | 7.1-25.4 | 7.1-25.4 | 7.1-23.8 | 7.1-22.2 | 7.1-19.1 | 8.0-18.5 |
| 52 | 1321 | 7.1-25.4 | 7.1-25.4 | 7.1-25.4 | 7.1-25.4 | 7.1-25.4 | 7.1-23.8 | 7.1-22.2 | 7.1-19.1 | 8.0-18.5 |
| 56 | 1422 | 8.0-25.4 | 8.0-25.4 | 8.0-25.4 | 8.0-25.4 | 8.0-25.4 | 8.0-25.4 | 8.0-22.2 | 8.0-20.6 | 8.0-18.5 |
| 64 | 1626 | 8.0-25.4 | 8.0-25.4 | 8.0-25.4 | 8.0-25.4 | 8.0-25.4 | 8.0-25.4 | 8.0-22.2 | 8.0-20.6 | 8.0-18.5 |
