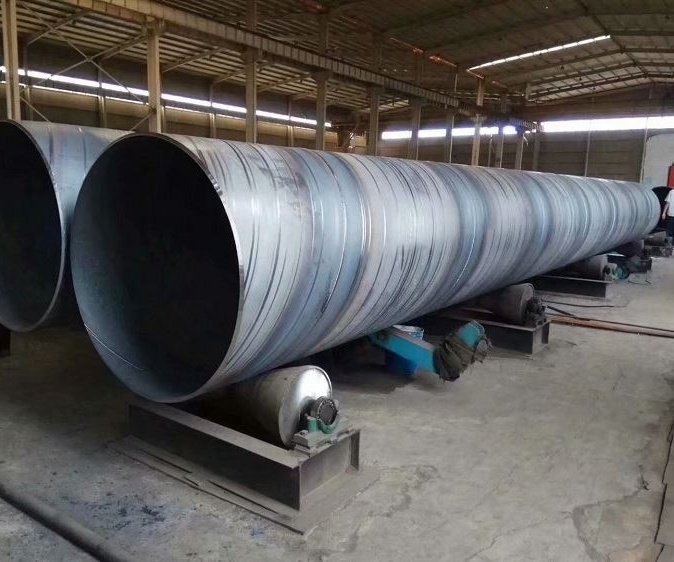

E-mail to us: info@hunanpipe.comSteel Pipes - SSAW Steel Pipe

Specifications Range
Out Diameter 219mm-3520mm
Wall Thickness 3mm-25mm
Length 3.0m-18m

Classfication

Classfication
Standard
Main Products
Steel Pipe for Fluid Service
GB/T 14291
Welded pipe for mine fluid sevice
GB/T 3091
Welded pipe for low pressure fluid service
SY/T 5037
Spirally submerged arc welded steel pipe for pipelines for low pressure fluid service
ASTM A53
Black and hot-hipped galvanized welded and seamless steel pipe
BS EN10217-2
Welded steel tybes for pressure purposes - delivery technical conditions - part2: Electric welded non- alloy and alloy steel tubes with specified elevated temperature properties
BS EN10217-5
Welded steel tybes for pressure purposes - delivery technical conditions - part5: submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties
Steel Pipe for Ordinary Structure
GB/T 13793
Longitudinally electric resistance welded steel pipe
SY/T 5040
Spirally submerged arc welded steel pipe piles
ASTM A252
Welded and seamless steel pipe piles
BS EN10219-1
Cold formed welded structural hollow sections of non-alloy and fine grain steels - part1: Technical delivert conditions
BS EN10219-2
Cold formed welded structural hollow sections of non-alloy and fine grain steels - part2: tolerances dimmsions and sectional properties
Line Pipe
GB/T 9711.1
Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class A steel pipe)
GB/T 9711.2
Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class B steel pipe)
API 5L PSL1/2
Line pipe
Casing
API 5CT/ ISO 11960 PSL1
Steel pipe for use as casing or tubing for wells of petroleum and natural gas industries


Chemical Analysis and Mechanical Properties

Standard
Grade
Chemical Composition(max)%
Mechanical Properties(min)
C
Si
Mn
P
S
Tensile Strength(Mpa)
Yield Strength(Mpa)
API 5CT
h40
- - - - 0.030
417
417
J55
- - - - 0.030
517
517
K55
- - - - 0.030
655
655
API 5L PSL1
A
0.22
- 0.90
0.030
0.030
335
335
B
0.26
- 1.20
0.030
0.030
415
415
X42
0.26
- 1.30
0.030
0.030
415
415
X46
0.26
- 1.40
0.030
0.030
435
435
X52
0.26
- 1.40
0.030
0.030
460
460
X56
0.26
- 1.40
0.030
0.030
490
490
X60
0.26
- 1.40
0.030
0.030
520
520
X65
0.26
- 1.45
0.030
0.030
535
535
X70
0.26
- 1.65
0.030
0.030
570
570
API 5L PSL2
B
0.22
0.45
1.20
0.025
0.015
415
415
X42
0.22
0.45
1.30
0.025
0.015
415
415
X46
0.22
0.45
1.40
0.025
0.015
435
435
X52
0.22
0.45
1.40
0.025
0.015
460
460
X56
0.22
0.45
1.40
0.025
0.015
490
490
X60
0.12
0.45
1.60
0.025
0.015
520
520
X65
0.12
0.45
1.60
0.025
0.015
535
535
X70
0.12
0.45
1.70
0.025
0.015
570
570
X80
0.12
0.45
1.85
0.025
0.015
625
625
GB/T 9711.1
L210
- - 0.90
0.030
0.030
335
335
L245
- - 1.15
0.030
0.030
415
415
L290
- - 1.25
0.030
0.030
415
415
L320
- - 1.25
0.030
0.030
435
435
L360
- - 1.25
0.030
0.030
460
460
L390
- - 1.35
0.030
0.030
490
490
L415
0.26
- 1.35
0.030
0.030
520
520
L450
0.26
- 1.40
0.030
0.030
535
535
L485
0.23
- 1.60
0.030
0.030
570
570
GB/T3091/ SY/T503
Q195
0.12
0.30
0.50
0.035
0.040
315
315
Q215B
0.15
0.35
1.20
0.045
0.045
335
335
Q235B
0.20
0.35
1.40
0.045
0.045
370
370
Q345B
0.20
0.50
1.70
0.035
0.035
470
470
ASTM A53
A 0.25
0.10
0.95
0.050
0.045
330
330
B 0.30
0.10
1.20
0.050
0.045
415
415
ASTM A252
1 - - - 0.050
- 345
345
2 - - - 0.050
- 414
414
3 - - - 0.050
- 455
455
EN10217-1
P195TR1
0.13
0.35
0.70
0.025
0.020
320
320
P195TR2
0.13
0.35
0.70
0.025
0.020
320
320
P235TR1
0.16
0.35
1.20
0.025
0.020
360
360
P235TR2
0.16
0.35
1.20
0.025
0.020
360
360
P265TR1
0.20
0.40
1.40
0.025
0.020
410
410
P265TR2
0.20
0.40
1.40
0.025
0.020
410
410
EN10217-2
P195GH
0.13
0.35
0.70
0.025
0.020
320
320
P235GH
0.16
0.35
1.20
0.025
0.020
360
360
P265GH
0.20
0.40
1.40
0.025
0.020
410
410
EN10217-5
P235GH
0.16
0.35
1.20
0.025
0.020
360
360
P265GH
0.20
0.40
1.40
0.025
0.020
410
410
EN10219-1
S235JRH
0.17
- 1.40
0.040
0.040
360
360
S275JOH
0.20
- 1.50
0.035
0.035
410
410
S275J2H
0.20
- 1.50
0.030
0.030
410
410
S355JOH
0.22
0.55
1.60
0.035
0.035
470
470
S355J2H
0.22
0.55
1.60
0.030
0.030
470
470
S355K2H
0.22
0.55
1.60
0.030
0.030
470
470


Tolerance of Outside Diameter and Wall Thickness

Standard
Tolerance of Pipe Body
Tolerance of Pipe End
Tolerance of Wall Thickness
Out Diameter
Tolerance
Out Diameter
Tolerance
GB/T3091
OD≤48.3mm
≤±0.5
OD≤48.3mm
- ≤±10%
48.3 ≤±1.0%
48.3
-
273.1 ≤±0.75%
273.1
-0.8~+2.4
OD>508mm
≤±1.0%
OD>508mm
-0.8~+3.2
GB/T9711.1
OD≤48.3mm
-0.79~+0.41
- - OD≤73
-12.5%~+20%
60.3 ≤±0.75%
OD≤273.1mm
-0.4~+1.59
88.9≤OD≤457
-12.5%~+15%
508 ≤±1.0%
OD≥323.9
-0.79~+2.38
OD≥508
-10.0%~+17.5%
OD>941mm
≤±1.0%
- - -
-
GB/T9711.2
60 ±0.75%D~±3mm
60 ±0.5%D~±1.6mm
4mm ±12.5%T~±15.0%T
610 ±0.5%D~±4mm
610 ±0.5%D~±1.6mm
WT≥25mm
-3.00mm~+3.75mm
OD>1430mm
- OD>1430mm
- - -10.0%~+17.5%
SY/T5037
OD<508mm
≤±0.75%
OD<508mm
≤±0.75%
OD<508mm
≤±12.5%
OD≥508mm
≤±1.00%
OD≥508mm
≤±0.50%
OD≥508mm
≤±10.0%
API 5L PSL1/PSL2
OD<60.3
-0.8mm~+0.4mm
OD≤168.3
-0.4mm~+1.6mm
WT≤5.0
≤±0.5
60.3≤OD≤168.3
≤±0.75%
168.3 ≤±1.6mm
5.0 ≤±0.1T
168.3 ≤±0.75%
610 ≤±1.6mm
T≥15.0
≤±1.5
610 ≤±4.0mm
OD>1422
-
- -
OD>1422
-
- -
- -
API 5CT
OD<114.3
≤±0.79mm
OD<114.3
≤±0.79mm
≤-12.5%
OD≥114.3
-0.5%~1.0%
OD≥114.3
-0.5%~1.0%
≤-12.5%
ASTM A53
≤±1.0%
≤±1.0%
≤-12.5%
ASTM A252
≤±1.0%
≤±1.0%
≤-12.5%
